In commercial and institutional restroom projects, the interface among faucets, fixtures, and countertops is where architectural intent meets constructability and long-term operations. When this assembly is treated as three unrelated product selections, the result is too often misaligned spouts, chipped edges, or non-compliant reach ranges. When the AEC team treats it as a single integrated system, the wash zone reads as a continuous, intentional element that also meets ADA, plumbing, and building performance requirements.
This article focuses on engineering, architecture, and specification concerns with an emphasis on durability, sustainability, and system integration for commercialrestroomdesign.com.
Design Intent and User Journeys
Before the selection of fixtures or the drafting of details, the project team should develop the concept of the wash station at the system level:
Monolithic vs. modular station strategy
Visual hierarchy of countertop vs. fixtures
Desired level of touchless operation
Cleaning and maintenance protocols
Cycles of use per day per station Anticipated
Useful reference for accessible lavatory strategy:
ADA Chapter 6 – Lavatories and Sinks Guide
Water-efficiency baseline guidance for early planning
EPA WaterSense – Commercial Buildings Overview
Dimensional Coordination: ADA, Reach Ranges, and Splash Zones
ADA Lavatory Clearances
Accessible lavatories have a number of requirements under the ADA Standards including rim height, knee and toe clearances, and protection of plumbing under the lavatory. These values should be modeled as clearance volumes in BIM to avoid field conflicts.
Summary of accessible lavatory requirements:
ADA 606 – Lavatories and Sinks Summary
Detailed diagrams and technical interpretations:
ADA Lavatories and Sinks PDF Guide
Faucet Reach and Control Location
Key dimensions include:
Spout projection to ensure that water falls within the basin
Countertop front-edge-to-basin distance
Sensor window placement for touchless faucets
Lever or control placement within accessible reach ranges
Plumbing Standards and Performance
Commercial facilities require lavatory fittings to meet ASME A112.18.1/CSA B125.1 for performance, leakage, structural integrity, and durability.
Overview of standard:
ANSI/ASME A112.18.1-2018/CSA B125.1-18 Plumbing Fittings
Federal water-efficiency purchasing guidance (useful for specification basis):
FEMP – Water-Efficient Plumbing Fixtures Procurement
Matching Faucet Types to Countertop and Basin Construction
Deck-Mounted Faucets
Coordination considerations:
Hole drilling tolerance and reinforcement
Clearance to backsplash or upstands
Access to mounting hardware and supply lines
Material compatibility: stone, solid surface, composite, and phenolic
Wall-Mounted Faucets
Higher tolerance requirements include:
Exact rough-in depth behind wall finishes
Alignment of the carriers or backing plates
Precise spout-to-basin projection in plan and elevation
Coordination with panelized wall systems
Countertop Material Implications
Solid surface/engineered composite: best suited for integrated troughs and seamless basins.
Natural stone: Requires reinforcement of substrate along with careful detailing around penetrations.
Phenolic and compact laminates require sealed penetrations and protection against moisture.
Reference for standard alignment of plumbing fittings:
ASME Plumbing Supply Fittings Standard Listing
Finish Coordination and Visual Hierarchy
Establishing Finish Hierarchy
Whether the design focuses on the countertop, fixtures, or wall system, the finish schedule must outline gloss levels, reflectance, and cleaning compatibility.
For projects aligned with CALGreen – water efficiency, durability, and low environmental impact, refer to:
CALGreen – Official Code Resources
Additional CALGreen implementation resources:
CALGreen Info – Implementation Resources
Coordinating Secondary Fixtures
Accessories require equal rigor in coordination:
Soap dispensers aligned with faucet centerlines
Hand dryers and paper towel dispensers located to minimize water tracking
Mirrors and lighting set for minimal glare and user height variability
Documentation and BIM Workflow Integration
Composite BIM Families
High-quality restroom coordination typically employs a composite family of lavatories including:
Counter slab geometry and edge profile
Basin shape, depth, and centerline offsets
Faucet spout height, reach, control location, and sensor geometry
Location of soap dispenser
ADA knee/toe clearance volumes
Supply and waste rough-in points
Power requirements for touchless systems
Standards and Specifications
Details should refer to company standards and external codes:
ADA lavatory requirements
ASME A112.18.1 plumbing fitting performance
CALGreen water-use requirements for faucets (where applicable)
Technical reference to the ASME standard on plumbing supply fittings:
ASME A112.18.1 Plumbing Supply Fittings Standard
CALGreen, upcoming code-cycle information:
2025 CALGreen Code Cycle – CEC Proceeding
Clarity of Responsibilities
Specifications should assign:
Who drills penetrations in countertops?
Who supplies anchors and carriers
Responsible for power supplies and access panels for sensor faucets
Procedures for rough-in dimension verification prior to fabrication
Long-Term Operations: Water, Energy, and Maintenance

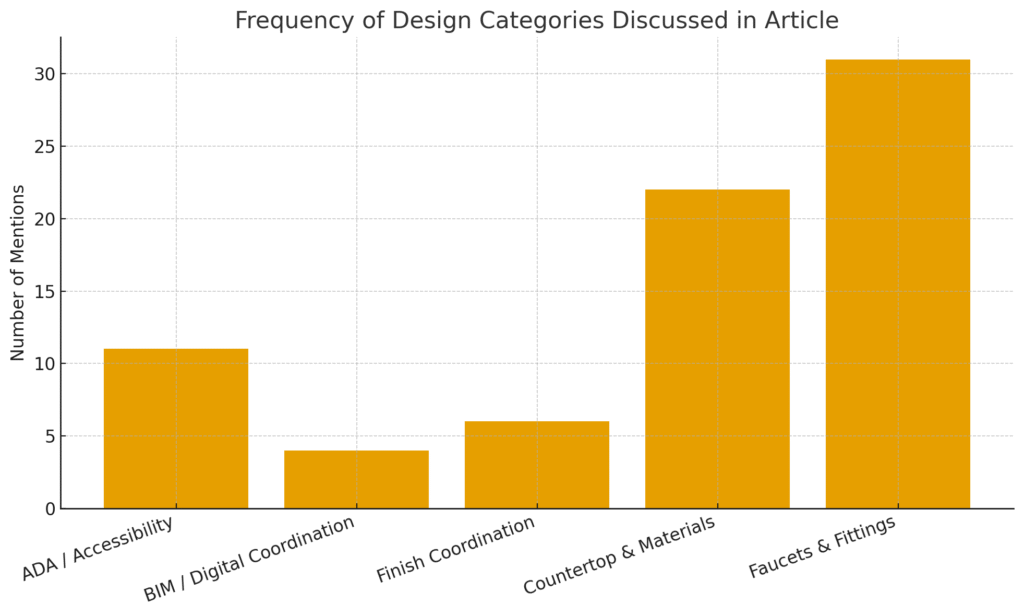

| Category | Main Focus | Key Points / References |
|---|---|---|
| ADA / Accessibility | Accessible lavatories and controls | Rim height, knee/toe clearance, reach ranges; ADA 606, Access Board guides |
| BIM / Coordination | System-level wash-station modeling | Clearance volumes, composite families, clash avoidance |
| Faucets & Fittings | Performance and reach of fixtures | Spout projection, sensors/controls, ASME A112.18.1, WaterSense/FEMP |
| Countertops & Materials | Structure, durability, compatibility | Hole drilling, reinforcement, moisture protection, solid surface/stone/phenolic |
| Finishes & Visual Hierarchy | Look, legibility, and cleanability | Gloss/reflectance, CALGreen-related finish choices |
| Operations & Maintenance | Long-term water, energy, and upkeep | WaterSense BMPs, CALGreen water-use, cleaning access, FM-friendly documentation |
Water and Energy Management
Fixtures should be selected to match whole-building water strategies.
EPA WaterSense BMPs for commercial facilities:
EPA WaterSense – Best Management Practices
Federal procurement efficiency guidance:
FEMP – Water-Efficient Plumbing Fixtures Procurement
CALGreen water-use requirements overview:
CALGreen – Water-Use Requirements Overview
Cleaning, Durability, and Access
Design for:
Reduced splash and cleanable basin geometries
Rounded edges on countertops to prevent chipping
Accessible joints for resealing
Finish types compatible with regular disinfectant cycles
Facility Management Integration
Well-documented lavatory assemblies simplify:
Replacement of cartridges, aerators, sensors
Materials and part number identification
Preventive maintenance linked to water management programs
Reference for whole-building WaterSense guidance:
EPA WaterSense – Commercial Buildings Guidance
Conclusion
Bringing together coordinating faucets, fixtures, and countertops into one unified system requires a technical approach based on ADA compliance, ASME plumbing standards, CALGreen or equivalent green building codes, and WaterSense-informed efficiency strategies. When AEC teams handle these assemblies holistically-with rigorous BIM coordination, clear detailing, and durable material strategies-the result is a wash zone that is accessible, maintainable, sustainable, and visually coherent for years of service.
