Why Touchless Matters in Commercial and Institutional Restrooms
In modern commercial and institutional projects, including airports, higher education, health care, civic, and workplace facilities, touchless fixtures have moved from “nice to have” to baseline expectation.
Touchless technology is a design variable affecting architects and engineers in the areas of:
- Code compliance: ADA, plumbing, and energy codes
- Water and energy performance: WaterSense, CALGreen, and local reach codes
- Durability and lifecycle cost
- Integration with building controls and asset management systems
Touchless restroom design is best thought of as a systems engineering problem: integrate hardware, sensors, valves, power, controls, mixing, and standards (ADA, ASME, WaterSense, CALGreen) into a robust maintainable solution.
Regulatory and Standards Framework
ADA Accessibility: Reach, Clearances, and Operable Parts
Primary ADA references:
Key ADA constraints relevant to touchless fixtures:
- Clear floor space and knee/toe clearance
- Reach ranges for sensors, soap outlets and operable parts
- Operable parts shall operate without tight grasping, and with forces not exceeding 5 lbf.
Design implication: Sensor windows and soap dispenser location must be dimensioned in plan and elevation and not left to field placement.
WaterSense Performance Requirements
WaterSense technical resources:
Please see: https://www.epa.gov/watersense/specifications-and-certifications
WaterSense establishes:
- Maximum flow rates below federal baselines
- Third-party certification
- Minimum performance criteria at reduced flow rates
Many institutional and public-sector projects adopt the WaterSense requirements, even when voluntary.
CALGreen and Conservation Requirements
CALGreen Nonresidential Mandatory Measures:
City of Berkeley Nonresidential CALGreen Checklist:
AIA Summary of 2022 CALGreen Mandatory Measures:
Key implications:
- Lavatory faucets: 0.5 gpm max at 60 psi
- Kitchen/service faucets: ~1.8 gpm max. (with allowed temperature boosts depending on jurisdiction)
- Metering faucets: GPC (gallons per cycle) limits for cycle-controlled fixtures
Such requirements necessitate coordination in concert with mixing valves, flow restrictors, and touchless control logic under actual project pressure conditions.
ASME A112.18.1 and Plumbing Fitting Standards
ASME Plumbing Supply Fittings (A112.18.1/CSA B125.1):
ASME A112.18.1 (GlobalSpec):
Sample ASME Document:
Typical spec inclusion:
Fittings shall conform to ASME A112.18.1/CSA B125.1 and the applicable provisions for flow control, backflow protection and anti-scald performance.
Core Components of Touchless Restroom Systems
Sensing Technologies
Examples of common sensing methods include the following:
- Passive Infrared PIR
- Capacitive sensing behind solid materials
- Microwave/Doppler for steam or reflective interference environments
Designers should confirm the detection cones, blind spots, reflectivity, and spacing between adjacent fixtures.
Control Logic
Touchless control systems handle
- Activation thresholds
- Run-on time
- Maximum continuous run duration
- Metering cycles, particularly under CALGreen
Specifications should stipulate:
- Adjustable sensor range
- Defined timeouts
- Fail-safe closed in case of sensor or power failure
Power Strategy
Touchless fixtures may be:
- Battery-powered
- Low-voltage hardwire
- Hybrid (battery + energy harvesting)
Design implications:
- Transformer sizing
- Access for battery changes
- Backup operation during outages
ADA-Consistent Layout of Touchless Fixtures
Lavatories and Faucets
ADA restroom guidelines:
Critical design considerations:
- 34-inch maximum lavatory height
- Compliant knee and toe clearances
- Sensor targets and soap outlets installed within forward or side reach limits
- Coordination between faucet spout projection and dispenser placement
Toilet and Urinal Flush Valves
Design notes:
- Manual overrides shall remain accessible.
- Avoid placing sensors that result in approach/departure double-activation
- Coordinate grab bar location to avoid obstruction of sensors.
Water and Energy Performance
Flow Rates
- Federal lavatory maximum: 2.2 gpm
- WaterSense toilets: ≤1.5 gpm
- CALGreen nonresidential lavatories: 0.5 gpm
Delivered flow shall be confirmed by project teams, not catalog flow, at project pressure.
Metering and Cycle Limits
Specifications should define:
- Cyclic volume per stroke
- Run time limits
- Reset intervals
These ensure the conformity of CALGreen without excessive water consumption in high-traffic environments.
Thermal and Energy Considerations
Hot-water design needs to balance the
- Prevention of Legionella
- Anti-scald limitations
- Low-flow warm-up delay
- Need for recirculation or point-of-use mixing
Durability, Vandal Resistance, and Maintainability
Mechanical Robustness
Institutional-grade fixtures typically require
- Cast brass or stainless steel bodies
- Impact-resistant sensor windows
- IP-rated enclosures in wet areas
- Tamper-resistant fasteners
Serviceability
Maintenance planning should include:
- Grouped access to valves and power supplies
- Replacing modular parts
- Long-term availability of spare parts
Cleaning Compatibility
Designers should coordinate:
- Material finish selection
- Cleaning chemical compatibility
- Recessed or protected sensor windows
System Integration and Smart Restroom Architectures
Networked Fixtures
Large facilities might include touchless fixtures integrated into the BMS platforms. Consider:
- Power and data pathways
- BACnet/IP, Modbus, or open API methods
- IT network segmentation and security
Telemetry and Analytics
Networked systems can report:
- Cycle counts
- Fault conditions
- Use patterns
- Predictive maintenance indicators
Requirements should specify open data formats, and at least minimal local retention of system logs.
Considerations for Specifications
Performance-Based Requirements
Effective requirements typically include:
- Compliant with ASME A112.18.1/CSA B125.1
- Verified flow rates to meet CALGreen or local code
- WaterSense-equivalent performance
Discipline Coordination
Touchless systems need deep coordination among:
- Architecture (layouts)
- Plumbing-water valves, mixing, recirculation
- Electrical (low voltage, panel capacity)
- Controls/BMS (data points, logic integration)
Commissioning and Failure Modes
Commissioning should address the following:
- Sensor calibration
- Run-time & timeout logic
- BMS integration testing
- Manual bypass procedures
Practical Design Checklist
- ADA reach, clearances, and operability
- CALGreen and WaterSense flow rates
- ASME A112.18.1 compliance
- Durable, vandal-resistant materials
- Controls integration and telemetry
- Accessibility for maintenance
- Thorough commissioning procedures
Conclusion
Touchless technology is central to modern restroom design and informs issues of accessibility, hygiene, sustainability, and long-term operational resiliency. By making decisions grounded in ADA, ASME, CALGreen, and WaterSense criteria-and considering touchless systems as an integrated component rather than an afterthought or accessory-design teams can craft restrooms that deliver on modern performance, durability, and sustainability imperatives.

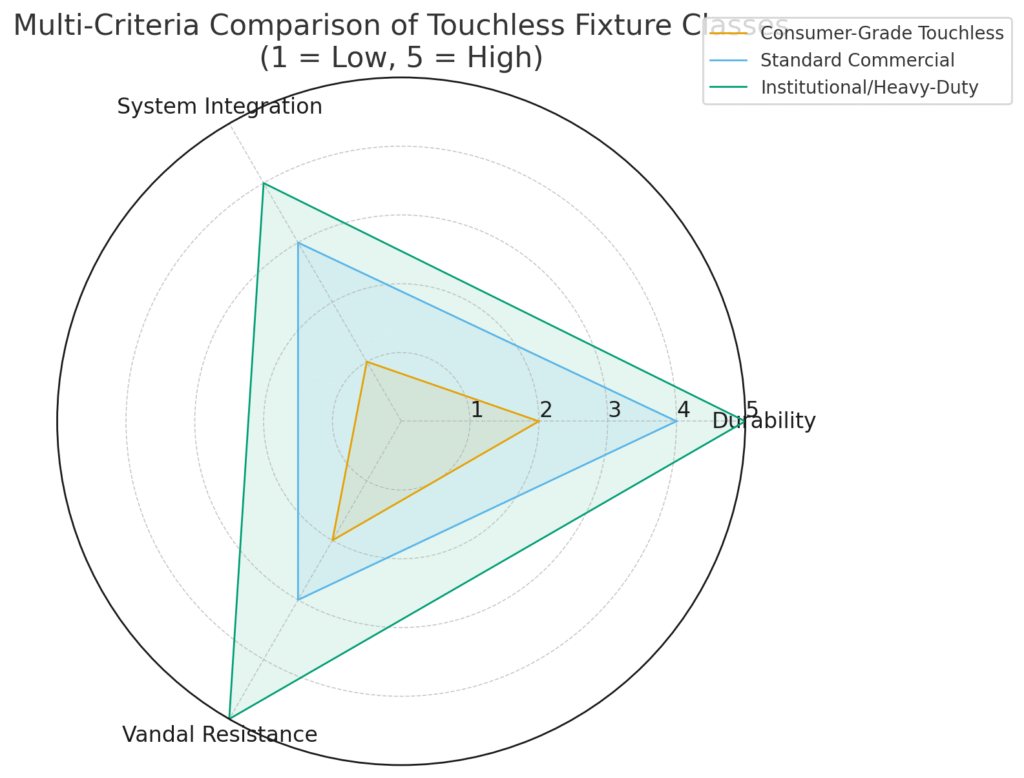

| Fixture Class | Durability (1–5) | System Integration (1–5) | Vandal Resistance (1–5) | Typical Use Cases |
|---|---|---|---|---|
| Consumer-Grade Touchless | 2 | 1 | 2 | Small offices, low-traffic restrooms, retrofit “light duty” |
| Standard Commercial | 4 | 3 | 3 | Office buildings, hotels, retail, typical commercial projects |
| Institutional / Heavy-Duty | 5 | 4 | 5 | Schools, transit hubs, arenas, correctional, high-abuse spaces |
