Sustainable Restroom Design: Water Efficiency and Energy Conservation Strategies

Hannah Kim - 25 November 2025 - 4:27 pm

Introduction

Commercial and institutional restrooms are compact but resource-intensive components of buildings. To architects and engineers they represent a systems-design challenge in plumbing hydraulics, mechanical loads, controls, accessibility, and long-term operability-rather than simply a fixture selection exercise.

The following sections offer an overview of an AEC-focused approach to water-efficient and energy-conscious restrooms that reference ADA, WaterSense, CALGreen, and ASME when appropriate. Each section places great emphasis on durability, sustainability, and system integration.

1. Regulatory and Standards Framework

Sustainable restroom design begins with the regulatory framework that defines minimum accessibility, safety, and performance. High-efficiency strategies must build upon-never work around-these requirements.

The 2010 ADA Standards for Accessible Design lists the following as enforceable requirements: clearances, turning spaces, reach ranges, lavatory knee/toe clearance, and the usability of operable parts. Official text can be found at:

2010 ADA Standards for Accessible Design

For water performance, the US EPA’s WaterSense program provides labeled criteria for toilets, urinals, faucets and showerheads, as well as guidance for commercial buildings:

US EPA WaterSense Commercial Buildings

Within this setting:

Geometry and usability within ADA governance include clear floor space, turning radius, grab bar placement, and accessible controls.
Other similar programs regulate the efficiency in the use of water, such as maximum flush/flow rates, and basic reliability criteria.
Jurisdictional green codes, such as CALGreen, outline additional indoor water efficiency requirements including effective flush and flow limits; other related standards such as ASME A112.18.1/CSA B125.1 define performance and durability for plumbing supply fittings.

A robust design framework considers these complementary layers: accessibility and code minimums, efficiency targets (WaterSense/ CALGreen) and engineering-level performance (ASME, local plumbing code).

2. Water-Efficient Restroom Systems: Planning

A structured approach toward water efficiency begins with a baseline water budget, proceeds through fixture selection, drainage design, and finishes with domestic water distribution.

The EPA’s WaterSense at Work guidance provides a very helpful practical reference on building-level strategies, especially regarding toilets.

EPA WaterSense at Work – Section 3.1 Toilets

In practice:

Determine the number and type of fixtures according to the plumbing code, IPC, UPC, or local variant based upon occupancy and use.
code-maximum values of flush/flow to calculate a baseline.
Apply target values: 1.1–1.28 gpf for flushometer toilets; 0.125–0.5 gpf urinals; 0.35–0.5 gpm lavatory faucets
Check the resulting gallons/occupant/day and confirm that the required indoor water reduction targets are met.

Hydraulic implications are very important:

Ultra-low flush volumes must be balanced against pipe diameters, slopes, and run lengths in order to maintain drainline transport and self-cleansing velocities.
Excessively large pipe diameters coupled with low flow result in deposition of solids, while correctly sized piping improves scouring even with reduced volumes.
Cleanouts and access chases should be designed for maintenance, particularly in very active public restrooms.

On the supply side, domestic water distribution is affected by low-flow fixtures:

Lower demand can permit smaller pipe sizing; pipes that are excessively large compared with the flow increases stagnation times.
Hot water delivery time can increase at very low lavatory flows, and may encourage users to run taps longer, which could offset savings.
These effects can be minimized with short distribution branches, manifold plumbing, and carefully sized hot water recirculation loops.

3. Energy Conservation in Restroom Systems

Major energy consumers in bathrooms include the generation and delivery of domestic hot water, ventilation, and electric loads for controls and accessories.

Many jurisdictions adopt green-building provisions that tie together water and energy performance. In California, for instance, the CALGreen code sets minimum nonresidential water-conserving plumbing requirements. These requirements have a direct influence on hot-water loads and pipe sizing:

CALGreen 2022 – Chapter 5 Nonresidential Mandatory Measures

For hot water systems serving primarily lavatories:

Right-size equipment: Hot water loads may be modest and intermittent. It is generally not effective to use large storage-type heaters or long loops of recirculation piping. Locate high efficiency or heat-pump water heaters near core restrooms to reduce losses.
Optimize recirculation: Recirculate based on demand or temperature control instead of using continuous loops. All branches receive required temperature without over-pumping, by balancing flows.
Insulate distribution: Apply or exceed energy code insulation thickness on the distribution piping, especially on longer runs or where ambient temperatures are conditioned.

On the electrical and controls side:

Sensor-operated fixtures, both faucets and flushometers, integrate low-voltage power with a strategy for the replacement of batteries and access for service. Adjustable run times and sensitivity allow tuning after occupancy to minimize waste.
Occupancy/vacancy sensors, multi-level controls, or interfaces with a digital lighting system can substantially reduce lighting energy use in restrooms when those rooms are not occupied.
Ventilation may be continuous or demand-controlled; in larger buildings, integration of restroom exhaust with an energy recovery ventilator (ERV) should be assessed where code allows restroom air streams on the exhaust side of an ERV core.

Collectively, these measures are what turn reduced water demand into actual energy savings, rather than just shifting consumption from the fixtures to distribution losses.

4. ADA, User Comfort, and Hygiene: Avoiding Trade-Offs

Water and energy efficiency strategies often impact user interfaces—control forces, sensor locations, and fixture positions—which must remain in compliance with ADA requirements and uphold perceived hygiene.

The ADA 2010 Standards clearly outline the reach ranges and operable parts, and the mounting of lavatories and accessories:

2010 ADA Standards for Accessible Design

Key implications for sustainable restroom design:

Reach ranges and controls: Sensor lenses, manual override buttons, and faucet handles shall be located within ADA forward and side reach limits and shall be operable with one hand, without tight grasping, pinching, or twisting, and with ≤5 lbf of force.
Knee and toe clearance: High-efficiency fixture bodies, traps, and under-sink piping shall be installed to provide the required clearance envelopes at lavatories and accessible washing stations.
Sequencing: Install low-flow faucets, soap dispensers, and hand dryers in a sequence that will allow users to wash, soap, rinse, and dry without crossing in front of others whenever possible and without having to walk across areas of wet, and possibly slippery, floor.

Perceived hygiene is a significant performance criterion:

Low-flow faucet outlets should be selected based on acceptable spray pattern and coverage at reduced flow.
Designing surface materials, slopes and drain placement serve to avoid standing water that erodes user confidence and creates maintenance problems, even when absolute volumes of water are small.

5. System Integration, Metering, and Analytics

Water-efficient restrooms function best integrated into an overall metering and controls strategy rather than as an assembly of isolated low-flow fixtures.

EPA WaterSense resources for commercial buildings identify submetering and ongoing monitoring as key parts of the water management process:

US EPA WaterSense Commercial Buildings

Best practices include:

Sub-metering of domestic cold water, domestic hot water, and sometimes individual cores or floors. The meters shall provide pulse or network outputs – such as BACnet/IP, Modbus – for integration with the BMS.

Trend and analyze key metrics:

Baseline restroom water use per occupant or per fixture.
Nighttime and off-hour flow patterns indicative of possible leaks or valve failures.
Peaks due to the occurrence of certain operating events, like arena intermissions and school bell schedules.

Leak detection:

Employ flow-pattern-based detection on branches or risers where automatic shut-off is possible.
Integrate alarm points into the BMS with defined response protocols.

The integration with other building systems would enhance performance to:

Accurate demand data are required for setpoint, staging, and recirculation algorithms in domestic water heating systems.
Restroom exhaust rates and latent loads from the shower or other humid spaces can impact HVAC systems.
Occupancy sensor data from the restrooms may be used for more general applications in utilization analytics, as well as for after-hours lighting and security control.

Correctly specified data points and communications protocols in the construction documents are just as important as the selection of the meters and valves themselves.

6. Materials, Durability, and Maintainability

Long-term sustainability requires materials and fixtures that can sustain performance in high-traffic, aggressive cleaning, and variable operating conditions.

ASME A112.18.1/CSA B125.1 covers the performance, longevity, and testing requirements for faucets, showerheads, and related supply fittings installed between the supply stop and terminal fitting:

ASME A112.18.1/CSA B125.1 Plumbing Supply Fittings

From a specification perspective:

All lavatory and shower fittings, including low-flow models shall be provided in accordance with the requirements of ASME A112.18.1/CSA B125.1 and local regulations.
Prefer strong body materials and finishes that are resistant to chemical cleaners, graffiti removal, and physical impact.
Specify vandal-resistant features for high-risk locations, such as recessed or protected sensors, tamper-resistant fasteners, and secured access panels.
Specify that counter, partition and floor materials be non-porous, slip-resistant, and compatible with reduced water volumes to prevent intermittent wetting from causing persistent moisture or staining.

Layout: Maintenance should be considered for

Provide accessible mechanical chases or ceiling zones for valves, strainers, and isolation points.
Provide adequate working clearances around flushometer rough-ins, mixing valves and metering devices.
Document as-built routing of piping and wiring to facilitate efficient troubleshooting.

7. Specification Checklist for Design Teams

A project-specific specification checklist is a concise means to ensure that water and energy performance targets, accessibility requirements, and durability expectations are captured in the contract documents.

For accessibility and code compliance, ADA 2010 Standards remain the definitive reference in the US:

2010 ADA Standards for Accessible Design

For water efficiency, EPA WaterSense product and building guidance supplies performance-based benchmarks that can be explicitly cited in specifications:

See also Commercial Toilets.
EPA WaterSense Commercial Toilets

What should a specification checklist contain?

Codes and standards: Check applicable plumbing, mechanical, energy and green-building codes. Example: CALGreen where adopted
Specify WaterSense-labeled products when available and applicable.
Require plumbing fittings to comply with ASME A112.18.1/CSA B125.1.

Fixture performance:

Establish maximum flush/flow rates.
Require field verification during commissioning.
Define sensor run times, auto-off defaults, and any local manual overrides.

Accessibility:

Mounting heights, clearances and reach ranges for fixtures and accessories should be explicitly called out in the drawings and schedules, not relegated to general notes.

Controls and metering:

Specify submeter types, data outputs, and required integration points with the BMS.
Specify leak detection thresholds and alarm points.

O&M deliverables:

Require as-built drawings, device addressing schedules and manufacturer O&M manuals.
Include a requirement for training of facilities staff on water and energy monitoring tools.

Water-Efficiency Targets Summary Table

Fixture Type	Minimum Target	Maximum Target	Units
Flushometer Toilets	1.1	1.28	gpf
Urinals	0.125	0.5	gpf
Lavatory Faucets	0.35	0.5	gpm

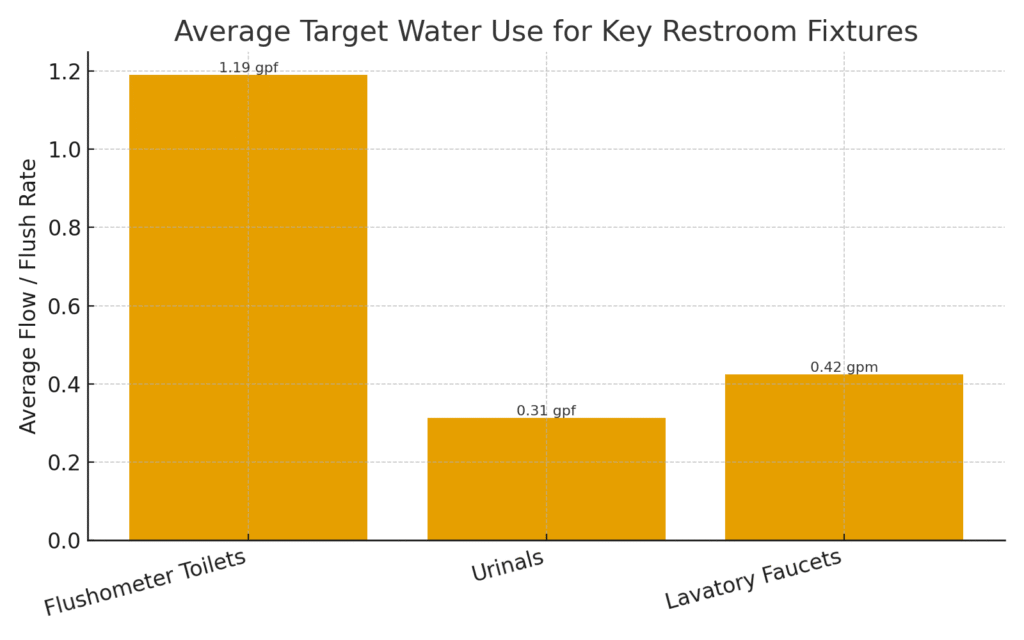

Average Target Values (Derived)

Fixture Type	Average Target	Units
Flushometer Toilets	1.19	gpf
Urinals	0.31	gpf
Lavatory Faucets	0.43	gpm

8. Conclusion

Sustainable restroom design in commercial and institutional buildings is best understood as a multi-variable engineering problem: reducing water use without compromising drainline performance; reducing energy use without sacrificing user comfort; and integrating fixtures and controls into building-wide monitoring and management systems.

Designing restrooms with established frameworks like the ADA 2010 Standards, EPA WaterSense guidance, CALGreen-style water performance criteria, and ASME durability standards in mind—and by explicitly focusing on metering, analytics, materials, and maintenance—architects and engineers can deliver restroom systems that are reliable over decades while greatly reducing resource consumption.
